Choisir entre unjoint de dilatation en tissuet unjoint de dilatation métalliqueIl ne s'agit pas simplement de choisir le produit le plus résistant ou le matériau le plus stable à haute température. Le choix optimal dépend du fonctionnement du système, de la pression à laquelle il est soumis, du fluide qui le traverse, du diamètre du conduit ou de la canalisation et de la charge admissible pour les équipements raccordés.
En général, les joints de dilatation en tissu sont très efficaces dans les grands systèmes de conduits à basse pression transportant de l'air chaud, des gaz d'échappement ou des gaz de combustion, tandis que les soufflets métalliques sont couramment choisis pour les tuyauteries sous pression et les systèmes de traitement où le confinement de la pression et la résistance mécanique sont essentiels.
Le tableau comparatif suivant explique les points forts de chaque conception et les facteurs à évaluer avant de spécifier un joint de dilatation.
Décision rapide :
Choisissez unjoint de dilatation en tissulorsque l'application implique de grands conduits, une basse pression, des mouvements latéraux ou combinés importants, des vibrations, des gaz chauds ou des charges de réaction admissibles limitées.
Choisissez unjoint de dilatation métalliquelorsque l'application implique des tuyauteries sous pression, de la vapeur, des liquides, des charges mécaniques plus élevées ou un système spécifiquement conçu autour de soufflets métalliques.
| Facteur de sélection | Joint de dilatation en tissu | Joint de dilatation métallique |
|---|---|---|
| Service typique | Conduits industriels et milieux gazeux | Tuyauterie, cuves et systèmes de procédés techniques |
| Capacité de pression | Applications principalement à basse pression | Peut être conçu pour supporter une pression nettement plus élevée. |
| Grandes dimensions de conduits | Très approprié | Possible, mais généralement plus complexe sur le plan mécanique |
| Mouvement axial | Excellent lorsqu'il est bien conçu | Excellent avec une géométrie de soufflet appropriée |
| Mouvement latéral | Grande capacité de mouvement dans des configurations compactes | Nécessite généralement une configuration de soufflet appropriée |
| Mouvement angulaire | Peut accueillir des mouvements combinés | Disponible avec des configurations techniques |
| Isolation des vibrations | Très bonne flexibilité | dépendant de l'application |
| Force du ressort | Généralement faible | Les soufflets génèrent des forces de ressort mesurables |
| Système de matériaux | Tissus composites, membranes et isolants | soufflets en alliage métallique |
| Médias communs | air chaud, gaz d'échappement, gaz de combustion, gaz de procédé | Vapeur, liquides, gaz et fluides de procédé |
| Géométrie typique | Formes rondes, rectangulaires et grandes formes personnalisées | Principalement ronds, mais des modèles rectangulaires sont également disponibles. |
L'une des manières les plus simples d'entamer le processus de sélection consiste à déterminer si le joint de dilatation est installé dans un grand conduit industriel ou dans un système de tuyauterie sous pression.
UNjoint de dilatation en tissu non métalliqueIl est particulièrement adapté aux conduits d'air et de gaz de grande taille. Ces systèmes sont fréquemment utilisés dans les centrales électriques, les cimenteries, les aciéries, les fours industriels, les systèmes de dépoussiérage, les équipements de combustion et les installations d'échappement.
Le fluide de procédé est généralement gazeux, et la pression est souvent relativement faible comparée à celle des tuyauteries de procédé sous pression.
Un joint de dilatation métallique utilise de fines volutes métalliques profilées pour assurer la flexibilité tout en maintenant l'étanchéité. Les soufflets métalliques sont largement utilisés dans les réseaux de vapeur, les tuyauteries industrielles, les industries pétrochimiques et chimiques, ainsi que dans d'autres systèmes techniques où la pression est un critère de conception essentiel.
Cette différence d'environnement d'application explique bon nombre des différences de performances entre les deux technologies.
La pression est souvent le premier facteur qui distingue un joint de dilatation en tissu d'un soufflet métallique.
Les joints textiles sont principalement destinés aux conduits basse pression. Leur élément flexible est constitué de tissus enduits, de couches de renforcement, de membranes d'étanchéité et d'isolant, et non d'un soufflet métallique sous pression.
On les trouve couramment dans :
Un soufflet métallique peut être conçu pour résister à une pression interne considérablement plus élevée. Sa paroi métallique sinueuse est conçue pour assurer à la fois flexibilité et confinement de la pression.
Cela rend les joints de dilatation métalliques adaptés à des applications telles que :
Règle de sélection :Si une pression importante du système doit être contenue, il convient généralement d'évaluer en premier lieu les soufflets métalliques. Les joints de dilatation en tissu ne doivent pas être considérés comme un substitut direct aux soufflets métalliques résistants à la pression.
C’est en mouvement que les motifs textiles deviennent particulièrement attrayants.
Une courroie en tissu peut se déformer sur une surface relativement large. Cela lui permet d'absorber des déplacements axiaux, latéraux et angulaires importants sans avoir recours à de multiples spires métalliques profilées.
Pour les grands systèmes de conduits où la dilatation thermique se produit dans plusieurs directions, cela peut simplifier considérablement la disposition des joints de dilatation.
Les soufflets métalliques peuvent également absorber ces mouvements, mais leur configuration doit être spécifiquement conçue en conséquence.
For example, larger lateral displacement may require a universal metallic expansion joint with multiple bellows and a center pipe rather than a single bellows element.
Therefore, when large lateral or combined movement is required in a low-pressure duct, afabric expansion jointis often the more practical design.
This is an important engineering difference that is often overlooked during purchasing.
A metallic bellows behaves like a mechanical spring. When it is compressed, extended or laterally displaced, it generates reaction forces that must be considered in the piping design.
These forces may influence:
Fabric expansion joints generally produce much lower spring forces because the flexible textile element is considerably softer than formed metal bellows.
For large duct systems connected to fans, furnaces or lightweight structural components, reducing these reaction loads can be a major advantage.
Fans, blowers, turbines and other rotating equipment can transmit vibration into connected ductwork.
A flexible fabric connector can help isolate some of this vibration because the textile belt does not create the same rigid mechanical path as solid ductwork.
This makes fabric expansion joints especially useful around:
Metal expansion joints can also accommodate vibration, but the movement amplitude, frequency and expected cycle life must be considered carefully in the bellows design.
For high-cycle vibration, neither product should be selected solely from a general product specification. Actual vibration data should be supplied to the manufacturer.
Large rectangular ductwork strongly favors fabric construction in many industrial systems.
Consider an exhaust duct measuring several meters across. Producing a metallic flexible element for such a large cross-section requires substantial metal fabrication and careful control of corner stresses.
A rectangular fabric joint can use a flexible belt installed around the perimeter of the duct, making very large dimensions more practical.
This is whyrectangular fabric expansion jointsare frequently seen in:
For these applications, size alone can significantly influence the final choice.
It is incorrect to assume that metal is always better at high temperature or that fabric automatically has a lower usable process temperature.
The two systems manage temperature differently.
Metallic bellows temperature capability is determined primarily by the selected alloy, design pressure, material strength at temperature and expected fatigue life.
Stainless steels and nickel-based alloys can be selected for elevated-temperature service.
A high-temperature fabric expansion joint may use several thermal layers rather than exposing one flexible membrane directly to the process gas.
A typical construction may include:
The insulation package can reduce the temperature reaching the external sealing materials.
Therefore, ahigh temperature fabric expansion jointshould be selected based on the full temperature gradient through the joint, not simply on the temperature rating of one fabric.
Hot flue gas and exhaust systems are among the most common applications for non-metallic designs.
These installations often combine:
That combination closely matches the strengths of fabric expansion joints.
Typical installations include:
For customized designs, BSTFLEX manufacturesNon Metallic Fabric Expansion Jointsfor industrial ducting, hot-air, flue-gas and exhaust applications.
Corrosion resistance cannot be judged simply by comparing “fabric” with “metal.”
The actual materials must be compared.
A metallic expansion joint may use corrosion-resistant stainless steel or nickel alloy when aggressive media are present.
A fabric expansion joint may use chemical-resistant barrier layers such as PTFE-coated textiles or other compatible membrane systems.
Selection should consider:
Condensation is particularly important in flue-gas systems because chemical attack may become more severe when corrosive gases condense on cooler joint surfaces.
Neither fabric nor metallic bellows should necessarily be exposed directly to severe turbulent flow or abrasive particles without protection.
A fabric joint may use:
A metallic bellows may also require an internal liner to prevent erosion, turbulent excitation or direct impingement on the convolutions.
This means gas velocity, dust loading and flow direction should always be included in the expansion joint specification.
Available space can strongly affect the decision.
A fabric joint can often absorb considerable lateral movement within a relatively short flexible span.
Metallic systems can also accommodate large displacement, but may require more complex arrangements such as universal joints, hinged joints or gimbal configurations depending on movement direction.
However, there are also piping layouts where a compact metallic bellows is the more appropriate design.
Installation space should therefore be considered together with pressure and movement rather than as an isolated factor.
Fabric flexible elements are generally lighter than comparable large metallic assemblies.
This difference becomes increasingly important as duct dimensions increase.
Lower component weight can reduce loads during:
In very large rectangular duct systems, this can be an important practical advantage.
Fabric expansion joints are often designed with replaceable flexible belts.
If the surrounding steel frames remain serviceable, maintenance may involve replacing the flexible element rather than removing the complete assembly.
This can be useful in large duct installations where removing welded steel frames would create significant shutdown work.
Metal expansion joints generally require replacement or repair of the metallic bellows assembly when the bellows itself becomes damaged.
The actual maintenance cost depends on system design, accessibility, joint size and failure mode.
There is no meaningful universal statement such as “metal lasts longer than fabric.”
Service life depends on whether the joint was correctly designed for the application.
A fabric joint can fail prematurely because of:
A metal bellows can fail because of:
Correct engineering matters more than simply choosing one material category over another.
| Application | Usually Preferred | Reason |
|---|---|---|
| Large Low-Pressure Flue Gas Duct | Fabric Expansion Joint | Large size, flexibility and multidirectional movement |
| High-Pressure Steam Pipe | Metal Expansion Joint | Pressure containment requirement |
| Large Rectangular Exhaust Duct | Fabric Expansion Joint | Practical for large custom cross-sections |
| Fan Connection | Fabric Expansion Joint | Low reaction forces and vibration isolation |
| Pressurized Chemical Pipeline | Metal Expansion Joint | Pressure and mechanical requirements |
| Cement Kiln Exhaust Duct | Fabric Expansion Joint | Hot gas, large duct and substantial movement |
| Process Piping | Metal Expansion Joint | Engineered for piping pressure and code requirements |
| Large Boiler Flue Duct | Fabric Expansion Joint | Low-pressure hot-gas application |
Afabric expansion jointshould be seriously considered when most of the following conditions are present:
This is the typical application envelope for anon metallic expansion joint.
A metallic expansion joint should normally be evaluated first when:
Metallic bellows are engineered pressure-containing components and should be designed around system pressure, temperature, movement, material, fatigue life and piping loads.
Instead of asking, “Which expansion joint is better?” engineers should ask, “Which expansion joint architecture matches this system?”
Use the following sequence.
Is it a large duct or pressurized pipe?
Specify normal pressure, design pressure and whether the system operates under positive or negative pressure.
Provide both continuous operating temperature and maximum excursion temperature.
List axial compression, axial extension, lateral displacement and angular movement individually.
Specify hot air, exhaust gas, flue gas, steam, liquid or process chemical.
Include gas velocity, dust loading, abrasive particles and turbulence.
Determine how much reaction force can safely be transferred to fans, duct supports, equipment nozzles and anchors.
Confirm shape, dimensions, flange arrangement and available face-to-face installation length.
Consider a large rectangular flue-gas duct installed downstream of industrial combustion equipment.
The system has:
In this situation, a fabric expansion joint is often an efficient choice because it can combine large cross-section capability, multidirectional flexibility and low reaction forces.
Now consider a high-pressure steam line operating at elevated temperature.
Although thermal movement still exists, the system requires reliable pressure containment. A metallic bellows engineered for the piping pressure, temperature and movement is generally the appropriate technology.
These examples demonstrate why the operating system must determine the expansion joint type.
For either metallic or fabric designs, the quality of the engineering recommendation depends heavily on the information supplied.
For a custom fabric joint, BSTFLEX recommends providing:
BSTFLEX manufactures custom non-metallic expansion joints for industrial hot-air, exhaust and flue-gas ducting systems.

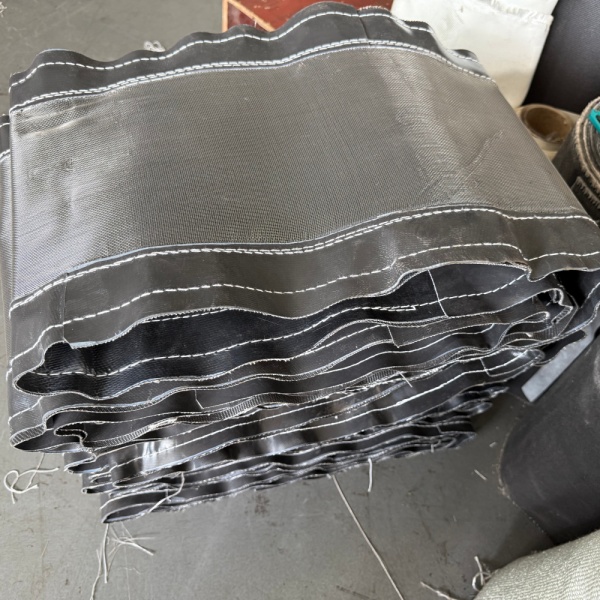

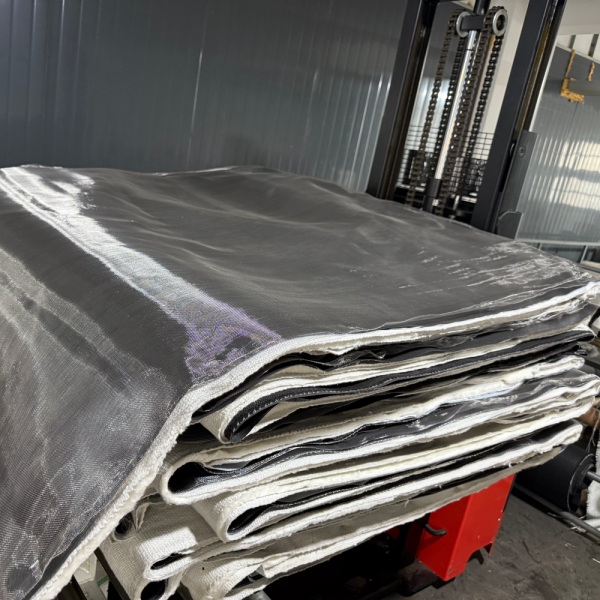

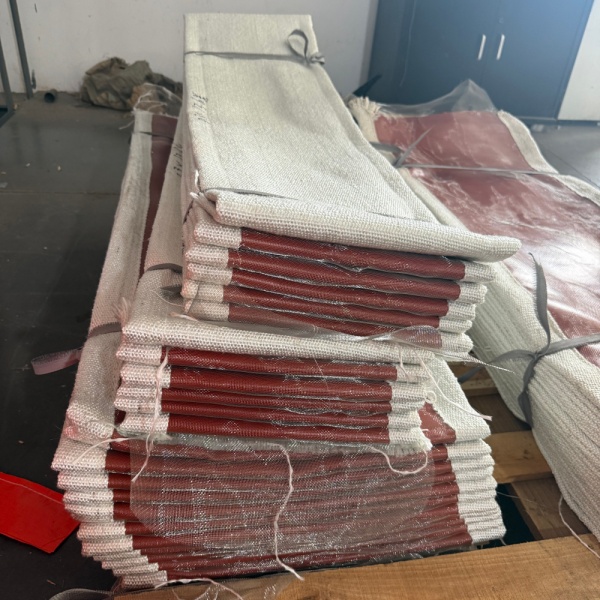

Depending on operating conditions, flexible constructions can incorporate technical fabrics, coated fiberglass, PTFE-based sealing layers, high-temperature insulation and protective components.
Round, rectangular and application-specific configurations can be manufactured according to customer drawings and operating data.
See theJoint de dilatation en tissu non métallique BSTFLEXpour les options de fabrication sur mesure.
Si votre application utilise un grand conduit industriel transportant de l'air chaud, des gaz d'échappement ou des gaz de combustion, veuillez envoyer à BSTFLEX votre schéma et vos conditions de fonctionnement pour évaluation.
Inclure les dimensions du conduit, la température, la pression, le fluide, le mouvement axial, le mouvement latéral, la longueur face à face et la quantité.
Demander un devis pour un joint de dilatation textile sur mesure
